SpaceX Merlin Engine Thrust-to-Weight Ratio Explained
Explore the engineering brilliance of a rocket engine that redefines efficiency and cost-effectiveness in space travel.
The SpaceX Merlin engine is a standout in rocket technology, primarily due to its high thrust-to-weight ratio. This metric measures how much thrust an engine produces compared to its weight, and the Merlin 1D achieves an impressive 184:1 ratio, far exceeding many competitors. Why does this matter? A higher ratio means rockets can carry more payload while using less fuel, leading to lower launch costs and increased efficiency.
Here are the key takeaways:
- Thrust-to-Weight Ratio: A critical measure of engine performance, with Merlin 1D leading its class.
- Lightweight Design: The engine uses advanced materials and systems to reduce weight.
- Reusability: Designed for multiple launches, cutting costs significantly.
- Comparison: Outperforms competitors like the RD-180 and RS-25 in efficiency and reusability.
The Merlin engine's design - including a gas-generator cycle, regenerative cooling, and streamlined components - has helped SpaceX dominate the commercial launch market by reducing costs and improving reliability. Its engineering excellence supports key goals like reusability and payload optimization, making it a cornerstone of SpaceX's success.
Elon Musk Explains SpaceX's Merlin Engine!

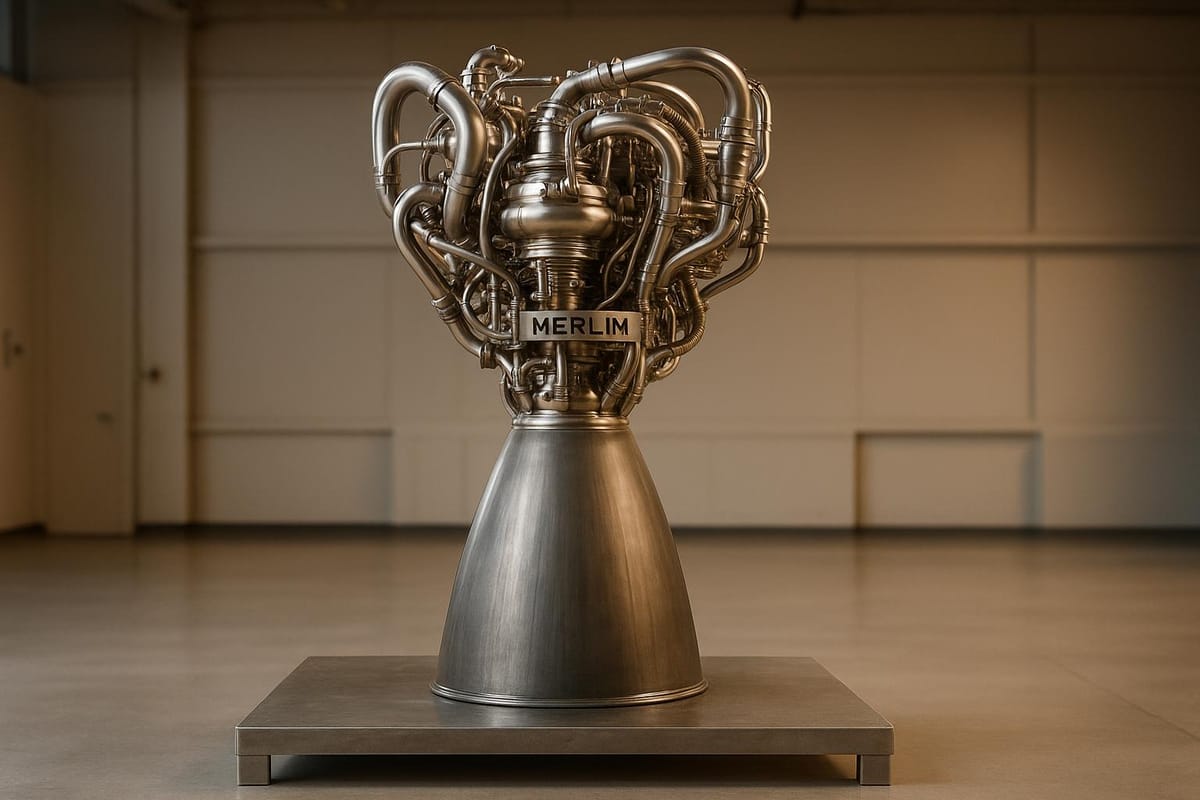

SpaceX Merlin Engine Overview
The Merlin engine is the powerhouse behind SpaceX's Falcon 9 and Falcon Heavy rockets. It strikes a balance between simplicity, reliability, and reusability, all while staying cost-effective by using readily available RP-1 fuel and liquid oxygen (LOX). This combination of practicality and efficiency forms the backbone of the engine's design and performance.
Merlin Engine Development History
SpaceX began working on the Merlin engine series in the early 2000s, refining it through several iterations over the years. These versions - Merlin 1A, 1B, 1C, and the current Merlin 1D - each brought meaningful upgrades. With every new design, SpaceX improved the engine's thrust-to-weight ratio, simplified manufacturing processes, and enhanced reusability. This methodical, step-by-step development has been crucial in cutting launch costs and ensuring more efficient operations, aligning perfectly with SpaceX’s mission to make space more accessible.
Merlin 1D Technical Specifications
The Merlin 1D stands out for its exceptional thrust-to-weight ratio, making it one of the most powerful engines in its class. Its design is versatile, allowing it to perform in both sea-level and vacuum conditions. The engine's ability to throttle deeply provides precise control during critical flight phases. Advanced cooling systems boost its durability and enable multiple in-flight restarts. SpaceX has also embraced modern manufacturing techniques, like 3D printing, to streamline production and keep costs down. Together, these features make the Merlin 1D a cornerstone of SpaceX's growing success in space exploration and launch efficiency.
Engineering Design Behind the Merlin Engine
The Merlin engine's impressive thrust-to-weight ratio stems from a series of smart engineering decisions. Its design incorporates regenerative cooling, a highly efficient gas-generator cycle, and streamlined components that simplify the overall system. These choices lay the groundwork for advances in material use, combustion efficiency, and reusability.
Lightweight Materials and Construction
The Merlin 1D features a regeneratively cooled nozzle and combustion chamber. This system channels RP-1 fuel through wall channels to absorb heat, effectively preventing overheating while doubling as a cooling mechanism. By using the fuel itself as a coolant, the need for separate cooling systems is eliminated, resulting in a lighter engine design. Another standout feature is the integrated hydraulic system. High-pressure propellant from the turbopump powers hydraulic actuators, and the fluid is then recycled back into the low-pressure inlet, further reducing weight and complexity.
Combustion System Design
The Merlin's gas-generator power cycle is central to its efficiency. Operating at a chamber pressure of 9.7 MPa (1,410 psi), the engine runs fuel-rich, which lowers combustion temperatures and protects the turbine from damage. A pintle injector ensures precise mixing of propellants, while the fuel-to-oxidizer ratio is fine-tuned using a servo-motor-controlled butterfly valve. This setup allows the Merlin 1D to throttle down to as low as 40% of its maximum thrust, adapting to various mission phases. Notably, the Merlin 1D holds the world record as the highest-performing gas-generator liquid propellant rocket engine using LOX and RP-1. This efficient design not only enhances performance but also supports SpaceX's goal of reducing both fuel consumption and launch costs.
Reusability Features and Cost Benefits
The engine's integrated design minimizes the number of components, simplifying its overall structure. For instance, the single-shaft, dual-impeller turbopump not only drives the engine but also supplies high-pressure fluid for hydraulic actuation. This eliminates the need for a separate hydraulic subsystem. By consolidating functions and reducing complexity, the engine design lowers both production and maintenance costs, making it a key element in SpaceX's cost-effective approach to space exploration.
Merlin Engine vs Other Rocket Engines
The Merlin 1D stands out in the competitive launch market with its balanced performance, cost efficiency, and reusability. To understand its edge, it's essential to break down how its design contributes to mission success.
Performance Comparison Table
| Engine | Thrust (lbf) | Weight (lbs) | Thrust-to-Weight Ratio | Propellant | Reusable | Primary Use |
|---|---|---|---|---|---|---|
| Merlin 1D | 190,000 | 1,030 | 184:1 | LOX/RP-1 | Yes | Falcon 9, Falcon Heavy |
| RD-180 | 860,000 | 12,566 | 68:1 | LOX/RP-1 | No | Atlas V |
| RS-25 | 512,000 | 7,775 | 66:1 | LOX/LH2 | Yes | Space Shuttle, SLS |
| Vulcain 2 | 300,000 | 3,858 | 78:1 | LOX/LH2 | No | Ariane 5 |
| RL10 | 24,750 | 608 | 41:1 | LOX/LH2 | No | Upper stages |
This table highlights the Merlin 1D's exceptional thrust-to-weight ratio of 184:1, which far surpasses competitors like the RD-180 (68:1) and RS-25 (66:1). What makes this even more impressive is that the Merlin achieves this performance while being fully reusable - a feature not shared by many of its counterparts.
Merlin's Performance Advantages
The Merlin 1D embodies engineering precision, delivering top-tier performance while aligning with SpaceX's goals of reducing costs and maximizing mission flexibility. Its lightweight design minimizes mass, allowing for either increased payload capacity or additional fuel reserves. Coupled with efficient production at SpaceX's Hawthorne facility, the engine supports frequent, cost-effective launches.
One of Merlin's standout features is its high thrust-to-weight ratio and advanced throttling capabilities. It can reduce thrust to as low as 40%, which is crucial for delicate maneuvers like booster recovery and precision landings. Many competing engines lack this level of throttling flexibility, often requiring more complex systems to achieve similar results.
The Falcon 9's clustered nine-engine configuration, powered by Merlin engines, adds another layer of reliability. This setup ensures mission success even if one or two engines underperform, unlike systems relying on fewer engines, which must incorporate more intricate backup protocols.
Merlin's reusability is a game-changer for launch economics. By enabling multiple flights with the same engine, SpaceX significantly reduces propulsion costs per flight, making their approach more appealing to commercial clients. This innovation not only transforms the economics of space exploration but also strengthens SpaceX's position in the market.
For those interested in how SpaceX's engineering achievements influence its market dominance, resources like the SpaceX Stock Investment Guide provide valuable insights into the company's growth trajectory and broader industry trends.
How Merlin Engines Affect SpaceX's Business
The Merlin engine isn't just a technical marvel; it's a game-changer for SpaceX's business strategy. Its design and performance have helped SpaceX redefine launch efficiency, cut costs, and strengthen its position in the competitive space industry.
Improved Rocket Performance
The Merlin engine's design directly boosts rocket performance, allowing for greater payload capacity and precise control during missions. Features like reliable restarts and adjustable throttle control make controlled landings and booster reusability possible. These capabilities streamline mission operations and align perfectly with SpaceX's goal of making space travel more affordable.
Lower Launch Costs
By focusing on efficient manufacturing and reusability, the Merlin engine significantly reduces the cost of launches. Streamlined production and the ability to refurbish boosters lower the expenses for each mission. This efficiency allows SpaceX to offer competitive pricing for its services while still maintaining profitability - a win-win for both the company and its clients.
Investment Implications
The success of the Merlin engine doesn’t just impact technology; it also strengthens SpaceX’s market position and attracts investor confidence. This combination of technical reliability and cost-effectiveness creates significant barriers for competitors. For more details on how these innovations affect market opportunities, check out the SpaceX Stock Investment Guide.
The lessons learned from developing and operating the Merlin engine continue to shape SpaceX's future projects, paving the way for advancements in the ever-evolving space industry.
Merlin Engine's Role in SpaceX Success
The Merlin engine has been a cornerstone of SpaceX's achievements, combining advanced engineering with cost-saving innovations. Its impressive thrust-to-weight ratio not only boosts payload capacity but also reduces the structural mass of rockets, making SpaceX's missions more efficient and profitable.
Main Points Summary
With a remarkable thrust-to-weight ratio of 184:1, the Merlin 1D showcases cutting-edge engineering that aligns perfectly with SpaceX's business goals. This efficiency allows for maximum payload delivery while keeping mission costs in check.
As of February 2024, Merlin engines have successfully flown on 22 missions, proving their reliability and durability. This track record highlights SpaceX's ability to reuse key components, significantly lowering the cost of launches.
The engine has set a new standard in rocket engineering, with experts frequently pointing to its high thrust-to-weight ratio as a benchmark for both performance and cost efficiency.
Future Impact on SpaceX
Looking ahead, further advancements in Merlin engine efficiency could unlock even greater potential for SpaceX. Improved thrust-to-weight ratios might accommodate larger payloads and pave the way for more ambitious missions, such as lunar landings and Mars exploration.
The engine's ability to support rapid launch turnaround and extensive satellite constellations positions SpaceX as a leader across various market sectors. For those interested in how these technical feats translate into business opportunities, the SpaceX Stock Investment Guide offers insights into the company's valuation trends and private equity strategies.
Ultimately, the Merlin engine isn't just a technical marvel - it’s a game-changing asset that continues to redefine the competitive landscape of the space launch industry.
FAQs
What makes the high thrust-to-weight ratio of the Merlin 1D engine important for SpaceX's rocket launches?
The Merlin 1D engine boasts a thrust-to-weight ratio of over 150:1, a feature that’s crucial for SpaceX’s rocket launches. This means the engine produces far more thrust than its own weight, enabling rockets to lift heavier payloads while maximizing efficiency during liftoff.
This exceptional performance doesn’t just enhance the rockets’ capabilities - it also drives down the cost of each launch. By making space missions and satellite deployments more affordable, it’s helping to open up new opportunities in space exploration. The engine’s efficiency remains a cornerstone of SpaceX’s success and its ability to stay ahead in the aerospace industry.
What makes the Merlin 1D engine so efficient and reusable?
The Merlin 1D engine is a marvel of engineering, designed with efficiency and reusability at its core. One of its standout features is the regeneratively cooled combustion chamber and nozzle, which boost thermal efficiency and durability. This design helps the engine endure the intense heat and pressure of launches without compromising performance.
Another key feature is its throttle capability, which allows for precise adjustments during ascent and re-entry. This level of control is crucial for ensuring safe landings and making the engine reusable.
These innovations not only improve the engine's reliability but also shorten the time needed between launches. By aligning with SpaceX's vision for rapid reuse, the Merlin 1D helps cut launch costs, paving the way for more affordable and frequent space exploration.
How does the Merlin engine's design influence SpaceX's cost efficiency and business strategy?
The Merlin engine has been a game-changer for SpaceX, thanks to its focus on reusability and cost efficiency. Designed to be reused multiple times, it has drastically reduced launch expenses, making space travel more affordable than ever. On top of that, its streamlined architecture - simpler than traditional staged combustion engines - makes it quicker to produce and easier to maintain, cutting operational costs even further.
By prioritizing reliability and affordability, the Merlin engine enables SpaceX to offer frequent, low-cost launches, a factor that has transformed the space industry and solidified its competitive edge. This forward-thinking approach fits seamlessly into SpaceX's larger mission of making space exploration more accessible.
