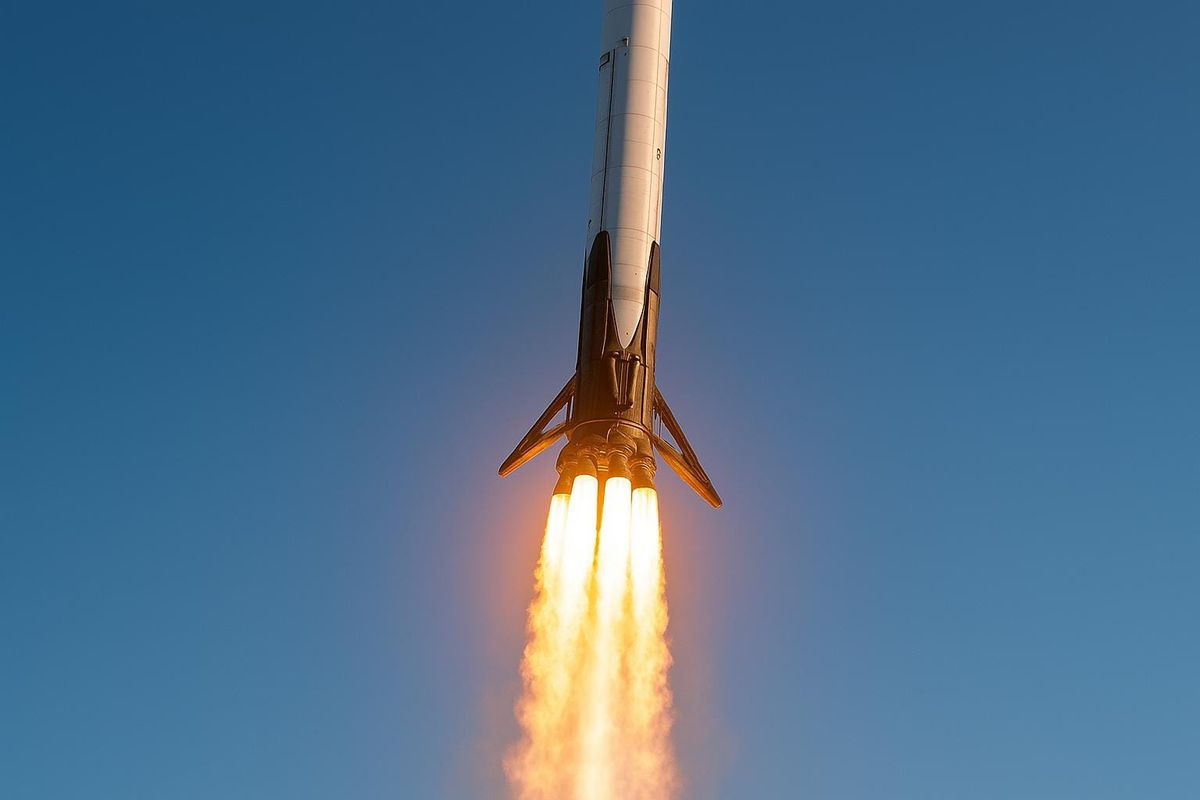

How Merlin Engines Power Falcon 9 Rockets
Explore how innovative engine design and reuse strategies have revolutionized rocket launches, driving down costs and ensuring mission success.
Merlin engines are the backbone of SpaceX's Falcon 9 rockets, enabling reusability and cost savings. These engines, fueled by liquid oxygen (LOX) and rocket-grade kerosene (RP-1), provide precise thrust control for liftoff, powered landings, and space operations. Here's a quick summary of what makes them effective:
- Reusable Design: Built for multiple launches with minimal maintenance, cutting launch costs from $50M to $15M per mission.
- Efficiency: Sea-level Merlin engines deliver 190,000 lbf thrust, while the vacuum version (MVac) ensures performance in space.
- Precision Landing: Supports powered landings with a 95% success rate as of 2024, using advanced controls and hoverslam maneuvers.
- Durability: Boosters like B1058 have flown up to 19 times, with refurbishment taking just 14 days.
- High Reliability: Achieved a 99.7% success rate over 1,163 flights.
Merlin's simplicity and advanced manufacturing allow SpaceX to produce one engine every 18 hours, revolutionizing space launch economics. Keep reading for a deeper dive into how these engines work and their role in SpaceX's dominance.
What's The Genius Trick Behind SpaceX's Merlin Engine?
Merlin Engine Basic Components and Function
The Merlin engine creates thrust by carefully combining and igniting its propellants. These propellants are delivered through dedicated lines to ensure precision. Let’s break down how the fuel cycle works to achieve efficient combustion.
Fuel Cycle and Combustion Process
The engine's thrust relies on a well-coordinated combustion process. Inside the combustion chamber, the propellants are broken down into fine droplets to maximize combustion efficiency. When ignited, these propellants produce high-pressure exhaust gases, generating the force needed to lift the Falcon 9 rocket.
First Stage Engine Configuration
The first stage of the Falcon 9 is designed to handle extreme flight conditions, including intense aerodynamic forces and heat. Its Merlin engines are equipped with a system that actively manages these stresses during flight. Let’s break down how this stress management works.
Flight Stress Management
During max-Q - the moment of highest aerodynamic pressure - the Merlin engines temporarily reduce their power. This throttling helps lower the strain on the rocket’s structure and manage heat levels. By adjusting thrust dynamically, the rocket remains stable and intact as it continues its ascent.
Landing and Reuse Systems
The Merlin engine is designed to support both descent and landing, enabling quick turnaround for repeated flights at lower costs. By combining advanced controls with precise engine management, SpaceX has transformed how rockets are recovered.
Descent Control Systems

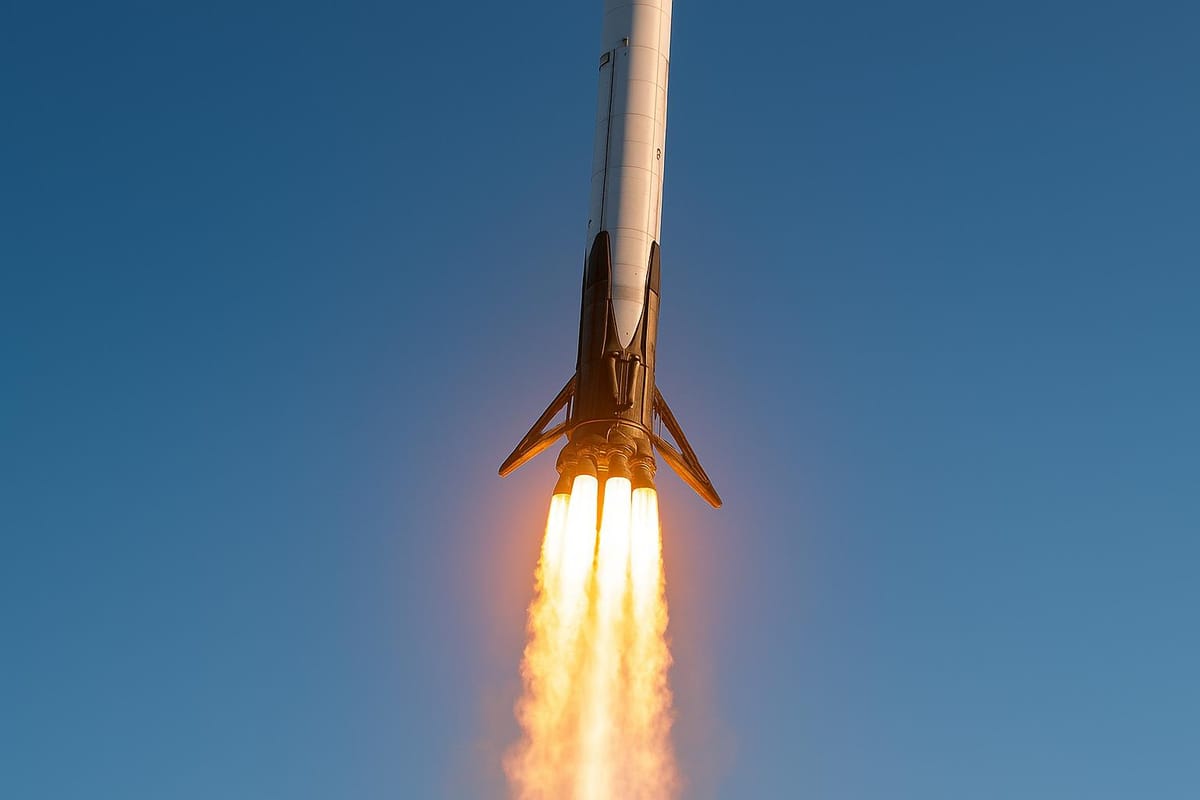

The descent process relies on a combination of Merlin engines and additional control systems. Titanium grid fins steer the rocket during atmospheric reentry, while nitrogen cold gas thrusters help maintain stability. During the initial descent, three Merlin engines perform an entry burn, creating a plasma shield that reduces peak heating by 30%.
This carefully managed descent allows for an engine-powered landing with high precision.
Engine-Powered Landing
The final landing phase showcases the Merlin engines' precision through the hoverslam maneuver, which demands accurate thrust control and timing. These engines can throttle between 40% and 100% thrust (76,000–190,000 lbf), ensuring precise control during descent.
| Phase | Engines | Duration | Altitude |
|---|---|---|---|
| Boostback | 3 | 20–40 sec | 230k–164k ft |
| Entry | 3 | 15–30 sec | 131k–66k ft |
| Landing | 1 | 30–45 sec | 16.4k–0 ft |
By 2024, this system achieved an impressive 95% landing success rate.
Post-Flight Engine Checks
After each flight, the engines go through a series of checks, including:
- X-ray scans of the turbopumps
- Pressure tests on combustion chambers (up to 3,000 psi)
- Fuel line filter inspections
- Test firings conducted at McGregor facilities
These thorough inspections ensure the Merlin engine's reliability for reuse. To date, the highest reuse record is held by booster B1060, which has flown 18 times, underscoring the durability of the engine design.
Second Stage Merlin Vacuum Engine
The Merlin Vacuum (MVac) engine is a specially modified version of the standard Merlin engine, tailored for use in space. While the first stage handles liftoff and recovery, the MVac engine is built for precise upper-stage operations. Below, we break down its space-focused design, functionality, and performance upgrades.
Space-Focused Design
The Merlin Vacuum engine is built differently from its sea-level counterpart. Its nozzle and internal systems are restructured to perform efficiently in the vacuum of space, ensuring a smooth transition from Earth's atmosphere to outer space.
Key Functions in Space
This engine's design allows it to handle critical space tasks, including burns for orbital insertion and trajectory adjustments. Its reliability ensures it can meet the precise demands of complex missions.
Performance Upgrades
With its reengineered design, the Merlin Vacuum engine achieves greater efficiency and power during upper-stage operations. This efficiency is crucial for meeting the varied needs of SpaceX missions, enabling accurate and dependable performance in space.
Conclusion: Merlin Engines' Role in SpaceX Operations
The Merlin engine family has transformed SpaceX's launch capabilities by boosting performance and cutting costs. With a 99.7% success rate over 1,163 flights, these engines have proven to be reliable even under demanding conditions.
The Merlin 1D+ delivers 190,000 lbf of sea-level thrust and boasts a 165:1 thrust-to-weight ratio - an impressive benchmark for liquid-fueled engines. This performance is supported by advanced manufacturing techniques.
"Merlin's simplicity forced us to innovate in manufacturing. We now produce one engine every 18 hours versus 18 weeks in 2010", said SpaceX VP of Propulsion Tom Mueller.
Reusability has been a game-changer, slashing launch costs from $50 million to $15 million per mission, with engine refurbishment costs at just $250,000. These efficiencies have propelled SpaceX to claim 68% of the global commercial launch market in 2024.
The durability of the engines is evident in Booster B1058, which achieved 19 successful flights as of May 2025. Its 14-day refurbishment process is a stark contrast to the industry standard of six months.
With 1.3 million engine-seconds of flight time, SpaceX has gathered invaluable data for future projects, including the development of the Raptor engine for Starship. This combination of practical experience and ongoing advancements ensures SpaceX remains at the forefront of space launch technology, cementing its dominance in the market.
For a detailed financial breakdown, check out the SpaceX Stock Investment Guide.
FAQs
How do the reusable Merlin engines help SpaceX lower the cost of Falcon 9 launches?
The reusable design of Merlin engines plays a key role in reducing the cost of Falcon 9 launches. By engineering the engines to withstand multiple flights with minimal refurbishment, SpaceX eliminates the need to build entirely new engines for each mission. This approach significantly lowers manufacturing expenses and turnaround times.
Additionally, the Merlin engines are optimized for efficiency and reliability, ensuring high performance while keeping operational costs manageable. This innovative reuse strategy is a cornerstone of SpaceX’s mission to make space exploration more affordable and accessible.
How is the Merlin Vacuum engine adapted for space compared to the sea-level Merlin engine?
The Merlin Vacuum engine is specifically designed to perform efficiently in the vacuum of space. Unlike its sea-level counterpart, it features a much larger nozzle, which helps optimize exhaust expansion in low-pressure environments, significantly improving thrust and efficiency. Additionally, it incorporates cooling systems and materials tailored to withstand the extreme conditions of space. These modifications ensure the engine operates reliably during the Falcon 9's second stage, propelling payloads into orbit with precision.
How do Merlin engines enable Falcon 9's precise landings and contribute to mission success?
The Merlin engines play a critical role in Falcon 9's ability to achieve precision landings, which are essential for SpaceX's reusability goals. These engines are equipped with advanced throttle control and gimbal capabilities, allowing the rocket to adjust its trajectory with extreme accuracy during descent.
By enabling controlled landings, the Merlin engines significantly reduce costs by making rocket reuse possible. This innovation not only improves the overall success rate of Falcon 9 missions but also helps SpaceX maintain its leadership in the aerospace industry by delivering reliable and cost-efficient launches.
