Deep Space Communication: Key Technologies

Deep space communication is the lifeline for spacecraft operating far from Earth. It enables sending commands, receiving data, and even spacecraft-to-spacecraft communication over vast distances. This article explores the challenges, technologies, and future advancements in this field. Here's a quick breakdown:

• Core Challenges: Signal delays (e.g., 24 minutes for Mars, hours for Neptune), weakening signals over distance, and spacecraft design constraints like limited power and size.
• Key Technologies:
  • Antennas: Ground-based systems like NASA's Deep Space Network use massive parabolic antennas, while spacecraft rely on smaller, lightweight designs.
  • Frequency Bands: S-band, X-band, and Ka-band are commonly used, each suited for different data needs and conditions.
  • Relay Satellites: Critical for maintaining connections when direct communication is blocked by celestial bodies.
  • Optical Communication: Emerging laser-based systems offer faster data rates but face alignment and atmospheric challenges.
• Applications: From Mars rovers to human missions, these systems support navigation, data transfer, and scientific research.

Future missions, including SpaceX's Mars plans, will rely on hybrid systems combining radio and optical communication for higher efficiency and reliability. This evolution is shaping the future of interplanetary exploration and connectivity.

Antenna Technologies for Deep Space Missions

High-Gain Antennas: Core Communication Tools

High-gain antennas are essential for deep space missions, with their parabolic dish design being the go-to choice. These antennas focus radio waves into a narrow beam, boosting signal strength and enabling even faint transmissions to be detected by highly sensitive receivers.

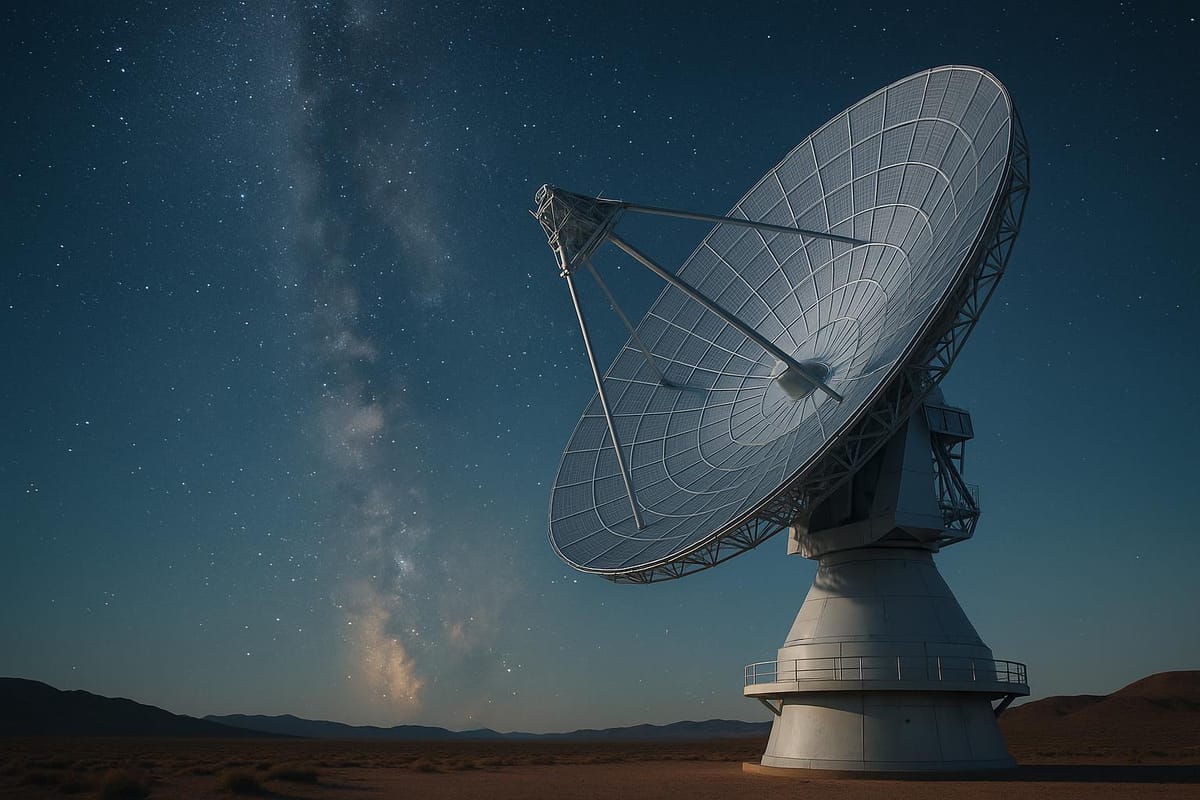

On Earth, facilities like NASA's Deep Space Network (DSN) operate enormous parabolic antennas, ranging in size from 112 feet (34 meters) to 230 feet (70 meters) in diameter. The largest of these antennas, located in California, Spain, and Australia, are capable of capturing the weakest signals from the farthest reaches of space.

Spacecraft antennas, while based on the same principles, face different design challenges. Take the Cassini spacecraft as an example: during its mission to explore Saturn from 2004 to 2017, it used a high-gain antenna with a diameter of just 2.3 meters (7.5 feet). Despite its relatively small size, it reliably transmitted data across vast interplanetary distances for 13 years. Whether on the ground or in space, these antennas play a crucial role in maintaining communication, as explored further in the next section.

Ground-Based vs. Spacecraft Antennas

The primary differences between ground-based and spacecraft antennas come down to size, power, and flexibility. Ground stations rely on massive, high-powered arrays, while spacecraft antennas are compact and operate with limited power.

Ground-based antennas, typically spanning 100 to 230 feet in diameter, are equipped with powerful transmitters and advanced tracking systems. These systems allow the antennas to rotate on multiple axes, ensuring they can precisely follow spacecraft over extended periods.

Spacecraft antennas, on the other hand, are much smaller, usually measuring between 3 and 15 feet in diameter. They operate on power budgets of just tens or hundreds of watts. For instance, the New Horizons probe, which flew by Pluto in 2015, uses an 8.2-foot antenna that transmits at low power but still managed to send high-resolution images across billions of miles.

Ground stations have the advantage of real-time tracking, allowing them to maintain a continuous lock on moving spacecraft. In contrast, spacecraft must rely on pre-programmed or autonomous systems to adjust their antennas. This becomes particularly challenging during critical moments like planetary flybys, where even a slight misalignment can result in a complete loss of signal.

How Antenna Design Affects Mission Success

Antenna design is a pivotal factor in determining the success of a space mission. Decisions about size, sensitivity, and pointing accuracy directly impact how much data can be transmitted and how far communication can reach. Larger antennas, for example, allow for higher data rates and longer communication ranges.

Mission planners aim to include the largest antenna possible within the spacecraft's design constraints. Precise pointing is especially important as distances increase, since even minor misalignments can weaken the signal. The Voyager 1 and 2 spacecraft demonstrate the importance of robust antenna systems. Despite being over 45 years old, they continue to communicate with Earth, thanks to careful planning and reliable designs.

Temperature stability is another critical factor. In space, antennas face extreme temperature swings - scorching heat in direct sunlight and freezing cold in shadow. To handle these conditions, antennas must be built with materials and designs that maintain their shape and functionality despite these fluctuations.

The James Webb Space Telescope, launched in 2021, showcases the cutting-edge of antenna design. Operating from the L2 Lagrange point, nearly one million miles from Earth, its high-gain antenna system ensures constant communication despite the harsh thermal environment and the precise pointing requirements needed for its astronomical observations. This level of engineering highlights the crucial role antennas play in the success of deep space missions.

How Do We Communicate with Faraway Spacecraft?

Relay Satellites and Network Infrastructure

Relay satellites play a crucial role in strengthening communication networks, stepping in when direct connections between spacecraft and Earth are disrupted.

How Relay Satellites Extend Communication Range

When celestial bodies block direct line-of-sight communication, relay satellites act as intermediaries, ensuring signals reach their destination. These satellites are strategically positioned in specific orbits to minimize communication blackouts. For instance, highly eccentric polar orbits are often chosen to reduce the frequency and duration of signal interruptions.

Adding Relay Systems to Mission Design

Incorporating relay systems into a mission demands meticulous planning, particularly when it comes to orbit design and antenna selection. Communications satellites might require inclined or moderately eccentric orbits to address mission-specific constraints while still reducing the risk of line-of-sight disruptions.

Antenna choice is equally important. Longer-range antennas, such as high-gain dishes, produce narrower beams, which can lead to blackouts if they become misaligned. To avoid this, mission planners often select antennas with the shortest range that still meets the network's needs. This approach not only broadens coverage but can also lower power consumption.

Signal Processing and Frequency Bands

Deep space missions rely on sophisticated signal processing techniques and carefully chosen frequency bands to maintain communication across the immense distances of space. Picking up faint signals amidst the cosmic noise is no small feat and requires advanced tools and methods.

Signal Detection and Processing Tools

Extracting weak signals from the noisy backdrop of space involves specialized algorithms designed to isolate and enhance these signals. To counteract the challenges posed by signal degradation, tools like error correction codes (e.g., Reed-Solomon and convolutional codes) come into play. These are paired with digital signal processors and phase-locked loops, which help maintain synchronization even when factors like Doppler shifts disrupt the signal.

Main Frequency Bands Explained

Deep space communication systems typically operate within three main frequency bands. Each band offers a different mix of benefits and challenges, tailored to specific mission needs:

S-band (2–4 GHz)
S-band frequencies can easily pass through Earth's atmosphere and work with simpler ground equipment. While they only support lower data rates, S-band systems are ideal for long-duration missions or as a backup communication option. They remain a staple in many older systems.

X-band (8–12 GHz)
X-band frequencies provide faster data rates and more focused antenna beams compared to S-band. This makes them suitable for missions requiring stronger signals and more efficient data transmission. However, these benefits come with added complexity in ground station equipment and moderate susceptibility to atmospheric interference.

Ka-band (32–34 GHz)
Ka-band frequencies push the boundaries of data transmission, offering much higher data rates essential for missions with heavy scientific data demands. However, they are more sensitive to weather conditions, requiring precise antenna alignment and sometimes additional infrastructure, like distributed ground stations, to ensure a stable connection.

Below is a comparison table highlighting the performance characteristics of these frequency bands:

Frequency Band Comparison Table

Each frequency band serves a distinct purpose, and mission planners must weigh the trade-offs between data needs, equipment complexity, and environmental challenges. For instance, while S-band is dependable even in poor weather, Ka-band - despite its high capacity - can suffer from significant signal loss due to atmospheric conditions, requiring extra measures to maintain a steady connection.

New Technologies: Optical and Laser Communication

Deep space communication is undergoing a transformation, moving beyond the long-standing reliance on traditional radio frequencies. Optical communication systems, powered by laser technology, are emerging as a game-changer, offering much faster data transfer speeds compared to conventional radio systems. These systems work by encoding data into concentrated laser pulses that travel between spacecraft and Earth. This development represents a major step forward, blending seamlessly with existing radio-based communication tools to enhance overall capabilities.

Deep Space Optical Communications (DSOC)

At the heart of optical communication lies the use of laser pulses to encode and transmit data across vast distances in space. Unlike radio waves, which tend to spread out as they travel, laser pulses stay tightly focused, allowing for more efficient data transfer. NASA has been actively developing this technology to push the boundaries of what space missions can achieve. Ground stations equipped with optical telescopes capture these laser signals and convert them into digital data using advanced photodetectors designed for high sensitivity.

Challenges in Laser Communication

While laser communication holds immense potential, it also brings unique engineering hurdles that must be addressed:

• Atmospheric Disruptions and Alignment Precision: Laser signals are highly vulnerable to interference from atmospheric conditions like clouds, rain, and turbulence. Additionally, maintaining precise alignment is critical - small shifts caused by spacecraft vibrations or temperature changes can break the connection.
• Energy Demands: Producing a laser beam strong enough to travel interplanetary distances and still be detectable requires significant power, posing challenges for missions with limited energy budgets.
• Durability of Components: Optical systems must endure extreme conditions, including high radiation levels, temperature fluctuations, and the long operational timelines typical of space missions.

Optical vs. Radio Communication Comparison

To better understand the differences, here’s a side-by-side look at optical and radio communication:

Radio communication remains the cornerstone of deep space missions because of its dependability and tolerance for less exact alignment. However, its slower data rates can limit the amount of information transmitted, especially for missions using advanced, high-resolution instruments.

Optical systems, on the other hand, offer the potential for much faster data transfers. This could make real-time high-resolution imaging from distant planets or moons a reality. Given the strengths and limitations of both methods, the most practical solution for future missions may be a hybrid approach - combining the robustness of radio systems with the speed and efficiency of optical technology. By integrating these two systems, space agencies can unlock new possibilities for interplanetary exploration and scientific discovery.

Applications for Interplanetary Missions

Communication systems are the backbone of interplanetary missions, enabling the exchange of mission-critical commands and data. These systems must be seamlessly integrated into mission plans, as delays and bandwidth limitations significantly influence spacecraft operations and data handling.

Communication's Role in Mission Planning

Designing communication systems for interplanetary missions is no small feat. Mission planners must ensure these systems support autonomous operations and critical data exchange, all while addressing the unique challenges of each destination. Communication architecture isn't just a support system - it directly impacts mission design, influencing everything from spacecraft autonomy to the capabilities of onboard scientific instruments.

Take Mars missions, for instance. With communication delays ranging from 8 to 24 minutes, spacecraft must operate autonomously. NASA's Perseverance rover is a prime example. It uses onboard processing to analyze terrain and navigate without waiting for instructions from Earth. Its communication setup includes high-gain and low-gain antennas, enabling both direct contact with Earth and relay connections through Mars orbiters.

Lunar missions, on the other hand, face different hurdles. The Moon's 1.3-second delay may seem negligible, but signal blockages during lunar nights or operations on the far side of the Moon add complexity. NASA's Artemis program tackles these issues by employing direct Earth links and planning for lunar relay satellites to ensure consistent surface coverage.

Bandwidth availability also shapes the scientific instruments a mission can carry. High-resolution cameras and spectrometers generate enormous amounts of data that need to be sent back to Earth. For example, the Mars Reconnaissance Orbiter has transmitted more than 400 terabytes of data since 2006. Achieving this required meticulous scheduling of communication windows and efficient onboard data storage.

These challenges highlight the need for ongoing advancements in interplanetary communication systems.

Future Missions and Communication Needs

As space exploration ventures further and mission goals become more ambitious, the demand for advanced communication systems grows exponentially.

The Mars Sample Return mission, planned for the early 2030s, is set to be one of the most communication-intensive undertakings yet. It involves coordinating multiple spacecraft - a lander, orbiter, and sample return vehicle - each with distinct communication requirements. Given the delays in communication, the mission will rely heavily on pre-programmed sequences and autonomous systems, with communication links providing updates and corrections as needed.

Beyond Mars, missions targeting places like Europa and the outer planets present even greater challenges. For instance, the Europa Clipper, scheduled to launch in 2024, must contend with Jupiter's intense radiation and a 33–52-minute signal delay. During close flybys of Europa, the spacecraft will operate autonomously, storing data for transmission during safer periods. Its communication system includes radiation-hardened components and multiple backups to ensure data integrity.

Future human missions to Mars will push communication needs to a whole new level. Astronauts will require near real-time communication for emergencies, high-definition video feeds to engage the public, and robust data transmission for scientific research. To meet these demands, optical communication systems are being developed, offering the bandwidth needed for human operations while ensuring reliability for crew safety.

Closer to Earth, the Gateway lunar space station will act as a communication hub for lunar surface operations. It will need to manage simultaneous communication with Earth, lunar crews, and visiting spacecraft, all while maintaining backup systems for emergencies.

Missions to the outer solar system present the toughest communication challenges yet. For example, a mission to Saturn faces delays of 67 to 84 minutes, while signals from Neptune take over 4 hours each way. These delays necessitate spacecraft that can operate almost entirely autonomously while still transmitting their findings back to Earth. Future missions to these distant regions are driving the development of more powerful transmitters, larger antennas, and advanced signal processing techniques to bridge these vast distances.

To address the growing complexity of interplanetary missions, the integration of hybrid communication systems is becoming essential. By combining traditional radio communication with cutting-edge optical technologies, these systems offer the reliability needed for operations alongside the high data rates required for scientific exploration. This dual approach paves the way for more capable and adaptable mission designs, ensuring future missions can meet their ambitious goals.

Connection to SpaceX Starship and Interplanetary Goals

SpaceX's vision for Mars colonization hinges on creating advanced deep space communication systems. The Starship program marks a significant departure from traditional space missions, aiming to support not just robotic exploration but also a long-term human presence across the solar system.

SpaceX Starship and Deep Space Communication

The reusability and scalability of Starship come with unique communication challenges. With its ability to carry larger cargo, more crew members, and transmit vast amounts of data, the demands for robust communication systems far exceed those of current deep space missions.

These systems must juggle multiple tasks simultaneously: ensuring reliable communication for the crew, providing continuous telemetry to mission control, and transmitting scientific data back to Earth. During interplanetary travel, the crew needs a dependable link to Earth for mission operations, while mission control relies on uninterrupted telemetry to monitor the spacecraft's health and trajectory. On top of that, scientific instruments onboard are expected to produce substantial amounts of data that must be sent back for analysis. This interconnected approach ensures seamless coordination between in-space operations and ground-based control, paving the way for future advancements.

SpaceX's experience with Starlink’s phased array antennas plays a critical role in enabling Starship to maintain communication with Earth, even during complex maneuvers. Additionally, insights gained from Dragon's missions to the International Space Station have helped refine the redundant and real-time communication systems required for deep space travel.

Once on Mars, Starship is expected to act as a communication hub for early colony infrastructure. Its design includes powerful transmitters and high-gain antennas capable of maintaining Earth contact under difficult conditions. Furthermore, Starship’s energy capacity is well-suited to meet the high power demands of deep space communication systems.

Opportunities to Innovate Deep Space Communication

SpaceX’s rapid development cycle offers a unique opportunity to accelerate progress in deep space communication. Unlike traditional aerospace timelines, SpaceX’s fast-paced approach enables quicker deployment of new technologies.

One area with significant potential is optical communication. With its expertise in precision manufacturing from the Starlink program, SpaceX is well-positioned to develop laser-based communication systems, which can deliver far higher data rates than current radio-based systems. Starship’s spacious payload bay can house the optical telescopes needed for such systems, potentially revolutionizing interplanetary data transmission.

Additionally, SpaceX’s vertical integration strategy ensures seamless coordination between propulsion, power, and communication systems. This integrated approach is critical for enabling autonomous communication management, a necessity when operating across the vast distances of interplanetary space where real-time input from Earth is limited.

Platforms like the SpaceX Stock Investment Guide highlight how these advancements could present investment opportunities tied to SpaceX’s communication innovations.

Looking ahead, the demand for cutting-edge communication infrastructure will only intensify as SpaceX moves closer to its Mars colonization goals. Future developments may include mesh networks between multiple Starships, local communication satellites orbiting Mars, and even an interplanetary internet backbone. These advancements won’t just support SpaceX’s ambitions - they could also reshape the commercial space industry as a whole.

Conclusion and Main Points

Deep space communication plays a crucial role in advancing modern space exploration. The technologies we've covered in this guide form the backbone of future interplanetary missions, enabling the exchange of critical data across vast distances.

Ground-based systems, such as NASA's Deep Space Network, are central to this effort. These massive antennas are designed to capture faint signals from spacecraft millions of miles away, ensuring a steady flow of information.

The shift toward optical and laser communication systems marks a significant step forward. These technologies promise to meet the growing data demands of future missions by delivering data at speeds far beyond what traditional radio frequencies can achieve.

Relay satellites, like those in the Mars Relay Network, provide another essential layer of support. Acting as communication bridges, they maintain connections between spacecraft and Earth, even when direct contact isn't possible due to planetary alignments or other obstacles.

Advanced signal processors are another key component. These systems can adapt in real time to the challenges posed by spacecraft traveling through the solar system, extracting meaningful data from even the weakest signals.

As we look ahead, these innovations pave the way for next-generation missions. For example, SpaceX Starship represents a leap forward in interplanetary communication, building on proven systems while integrating cutting-edge optical technologies. Future endeavors, such as Mars colonization, will rely on robust communication systems capable of supporting high-bandwidth data, voice, and video transmissions to sustain human presence.

These advancements also open up new opportunities in the commercial space sector. Companies like SpaceX are driving innovation, and the communication infrastructure supporting their missions is becoming increasingly valuable. For those interested in the financial potential of these developments, resources like the SpaceX Stock Investment Guide provide insights into how these technologies might shape the broader space economy.

The future of deep space communication could include mesh networks connecting multiple spacecraft, dedicated communication satellites orbiting Mars and other planets, and even an interplanetary internet linking human settlements across the solar system. These aren't just theoretical concepts - they are engineering challenges actively being addressed today.

As humanity stands on the brink of becoming a multi-planetary species, the communication systems that keep us connected across the cosmos will be as indispensable as the rockets that carry us to new worlds.

FAQs

How do relay satellites ensure uninterrupted communication when direct contact with Earth is blocked?

Relay satellites are the unsung heroes of deep space communication, bridging the gap between spacecraft and Earth. Positioned strategically, they maintain a clear line-of-sight with both, even when direct signals are blocked by planets or disrupted by solar activity.

To achieve this, many relay satellites operate in specialized orbits, such as those near Lagrange points. These locations allow them to stay in ideal positions for relaying signals. By sidestepping obstacles and reducing interruptions during events like solar conjunctions, relay satellites ensure communication remains steady over the immense distances of space.

What are the benefits and challenges of using optical communication systems instead of traditional radio frequencies in deep space missions?

Optical communication systems bring some major benefits to deep space missions compared to traditional radio frequencies. One standout advantage is their ability to deliver much higher data rates - up to 40 times more. This means faster transmission of massive datasets, like high-resolution images or videos, which is crucial for space exploration. On top of that, they consume less energy, making them a smart choice for missions requiring high-data-rate communication.

That said, these systems aren't without their challenges. Factors like cloud cover and atmospheric turbulence can interfere with signals, and maintaining precise alignment of the communication links is absolutely essential for dependable performance. Even with these obstacles, the promise of handling larger amounts of data makes optical communication a game-changer for deep space technology.

Why is antenna design critical for deep space missions, and what factors are considered when selecting the right antenna?

The Importance of Antenna Design in Deep Space Missions

Antenna design is a key element in the success of deep space missions, providing the foundation for reliable communication across the immense distances of space. As signals weaken dramatically during their journey through space, spacecraft depend on high-gain antennas with precise directional capabilities to send and receive data efficiently.

When choosing an antenna for a mission, several factors come into play:

• Frequency range: The antenna must align with the mission's specific communication needs.
• Environmental durability: It must endure the harsh conditions of space, including extreme temperatures and intense radiation.
• Performance specifications: Antennas need the right combination of gain, radiation patterns, and deployability to operate effectively in space.

By carefully addressing these considerations, engineers ensure that spacecraft maintain stable communication links, which are essential for the success of any mission.
